Retaining Wall Engineering

Retaining walls hold back significant forces, and fail when engineers aren't involved

A retaining wall is a structural system that resists the lateral pressure of retained soil, water, and surcharge loads from vehicles, structures, or landscaping above. When designed and constructed correctly, a retaining wall performs reliably for decades. When the engineering is inadequate, or absent altogether, the consequences include wall rotation, sliding, cracking, and in severe cases, catastrophic collapse with soil movement affecting adjacent properties.

At IA Engineering, we provide structural engineering for new retaining wall construction, independent assessment of existing walls, and remedial engineering for walls that are showing signs of distress. Our scope covers all common retaining wall systems, including reinforced concrete, steel post and timber sleeper, steel post and precast concrete sleeper, masonry and block, and gabion, across residential and commercial sites throughout NSW.

Whether you are building a new wall to enable a construction project, assessing an existing wall before purchasing a property, or repairing a wall that has begun to move or crack, our engineers provide practical, cost-effective solutions based on a proper understanding of the structural conditions rather than a one-size-fits-all approach.

Retaining Wall Systems

Every wall system engineered for the soil, site, and surcharge

We design retaining walls by analysing the actual soil pressures, drainage conditions, and surcharge loads on the site, not by applying generic span tables to conditions they were never calibrated for.

  • Reinforced concrete retaining walls
  • Steel post with timber or concrete sleeper walls
  • Masonry, block, and segmental block walls
  • Gabion and stone gravity walls
  • Remediation of failing or damaged walls
Stone-faced steel post retaining wall with balustrade on a sloping Sydney site
Project Spotlight

Retaining Wall Remediation

Lane Cove, NSW

Assessment, Design, Construction & Remediation

This project involved the assessment of the existing retaining wall, development of a remediation solution, and construction of a new engineered retaining wall system. The design considered the site constraints, structural stability, soil conditions, drainage requirements and construction requirements.

A key feature of the project was the relocation of the new retaining wall approximately 1 metre forward, creating significantly more usable space across the backyard and improving the overall utilisation of the site.

The final solution was developed and constructed to improve the safety, stability and durability of the retaining wall while maximising the usable space within the property.

Wall Systems

The retaining wall systems we design and remediate

Each system resists soil pressure in a different way, and each has conditions where it is the right answer and conditions where it is not. We design, assess, repair, strengthen, and rehabilitate all of the systems below.

Reinforced Concrete Retaining Walls

The most robust and reliable retaining system: a reinforced concrete stem connected to a foundation, working together as an integrated structure to resist lateral soil pressure, surcharge loads, and water pressure. Particularly suitable where wall height, loads on the retained ground, tight site space, or durability requirements call for an engineered solution.

Common applications include sloping residential sites, basements and below-ground structures, driveways, property boundaries, and walls adjacent to buildings or swimming pools, as well as locations where there is simply no room for other retaining systems.

An old or damaged concrete wall does not necessarily need to be demolished. Following assessment, crack and spall repair, strengthening of wall or foundation sections, and capacity upgrades can often extend the service life of the existing structure.

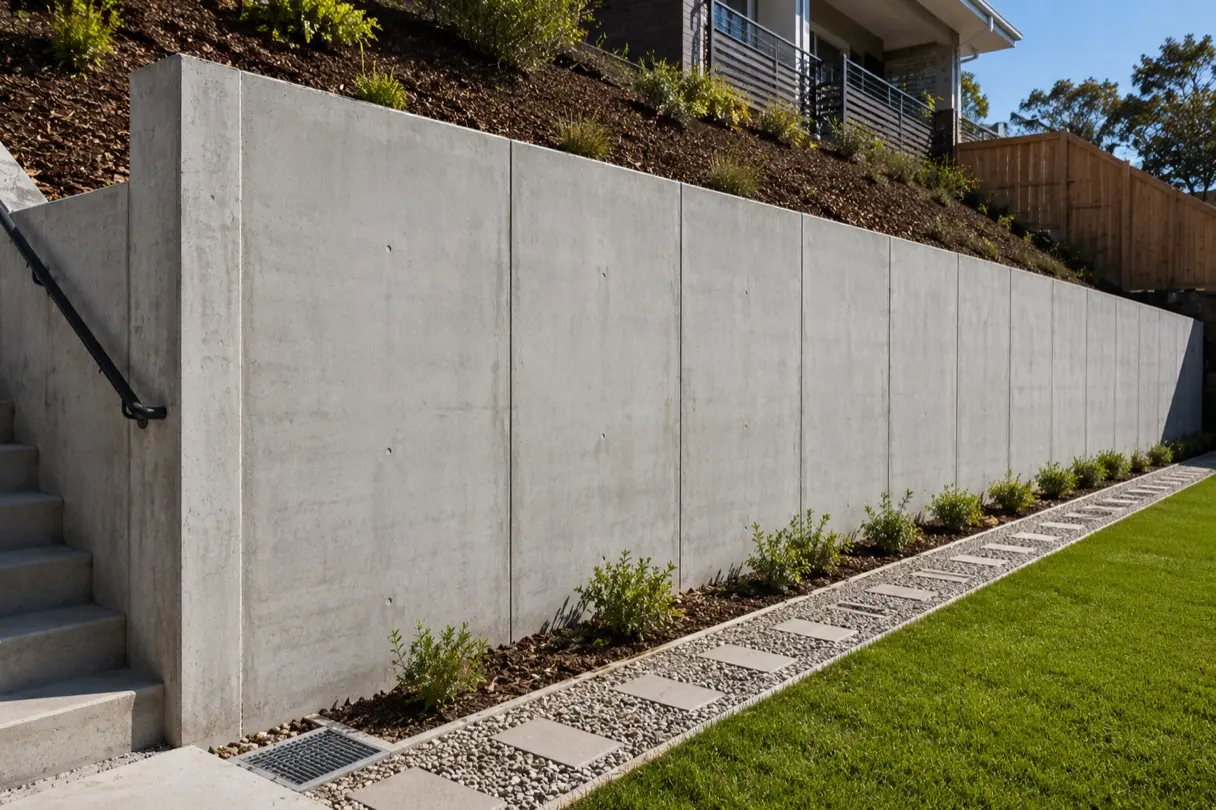

Off-form reinforced concrete retaining wall with subsoil drainage on a sloping residential site

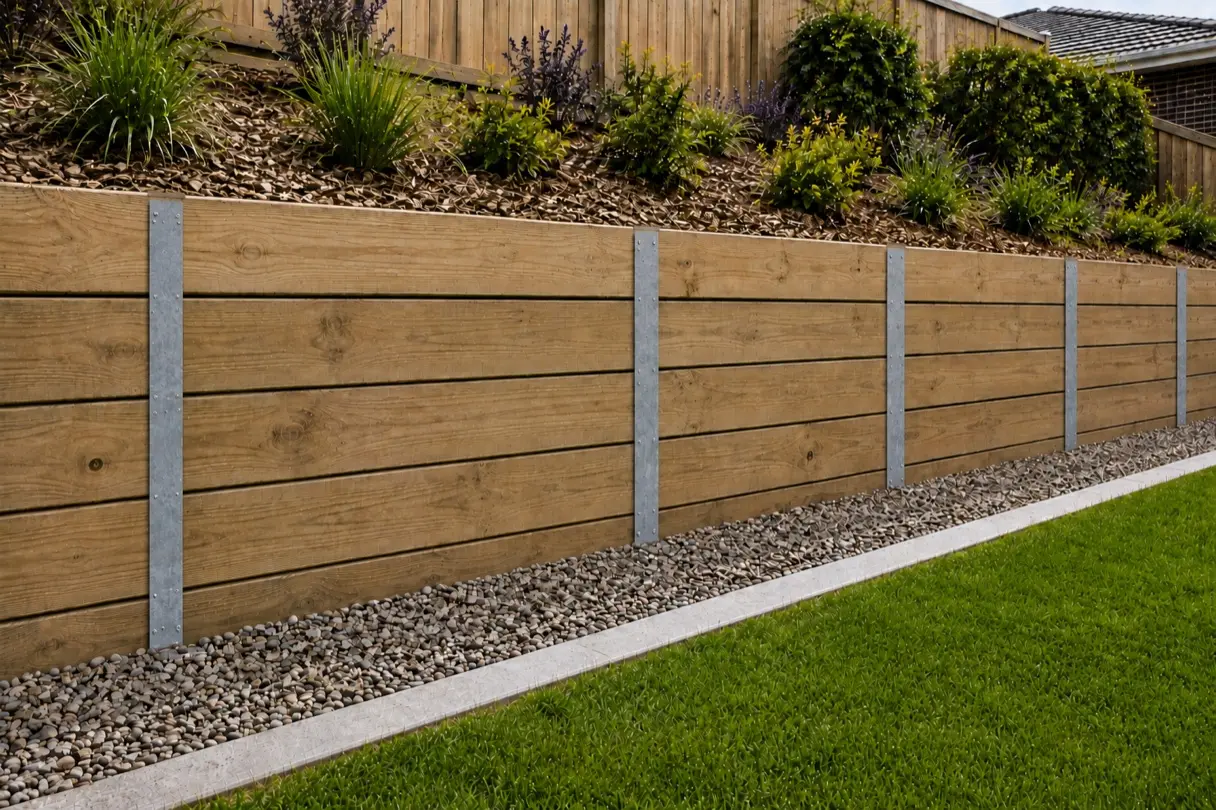

Steel post and timber sleeper retaining wall with drainage aggregate at its base

Steel Post & Sleeper Retaining Walls

The most common residential system. Steel posts act as the principal structural members, transferring soil pressure into the ground through their embedded footings, with timber or precast concrete sleepers spanning between them. Modular, fast to install, and economical when properly engineered.

Post spacing, steel section size, embedment depth, sleeper capacity, and drainage are the critical design variables. Although the system looks simple to build, a generic retaining-wall detail is not appropriate for every site.

Converting an existing timber sleeper wall to concrete sleepers is not just a matter of swapping the sleepers. The capacity of the existing posts and footings must be assessed before the heavier sleepers go in.

Timber or precast concrete sleepers?

Timber sleepers are lighter, easier to install, and economical for many residential and landscaping walls, provided the species and treatment suit ground contact and moisture. Precast concrete sleepers offer greater durability, moisture and fire resistance, longer service life, and lower maintenance, in a range of profiles and finishes. The right choice depends on site conditions, wall height, exposure, budget, and design life.

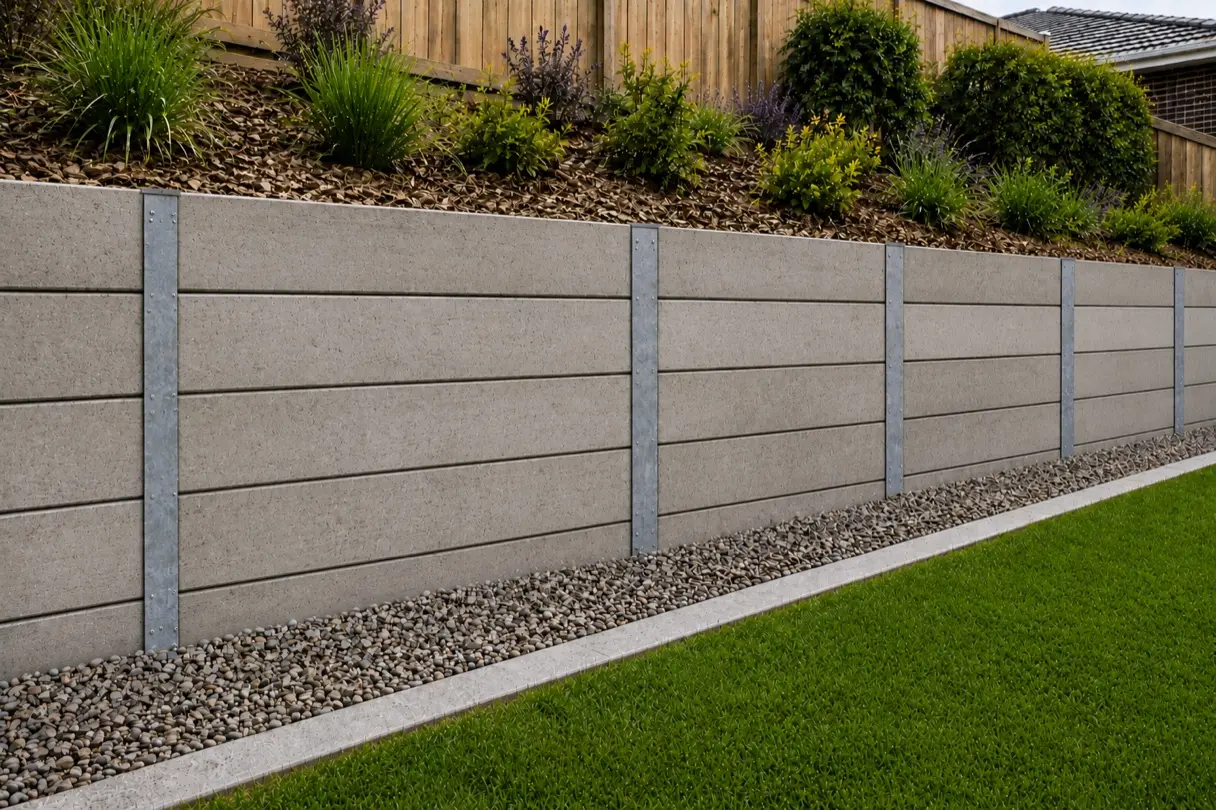

Steel post retaining wall with precast concrete sleepers along a landscaped garden

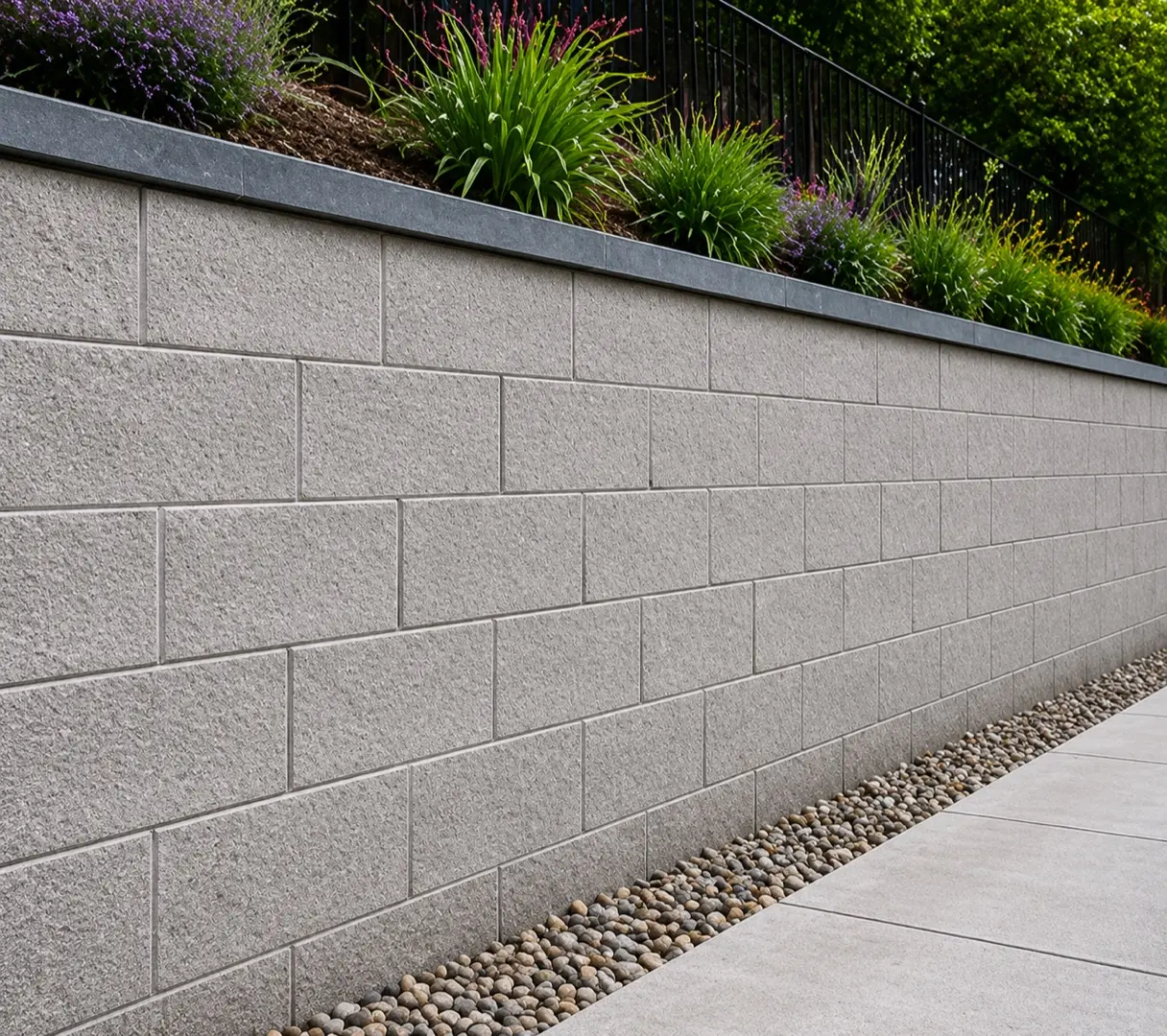

Reinforced concrete block retaining wall with capping and pebble drainage strip beside a driveway

Masonry & Block Retaining Walls

Reinforced masonry, core-filled concrete block, architectural block, and segmental block systems, designed to AS 3700 with steel reinforcement and grouted cores where the retained height and loading demand it. An effective balance of structural performance, durability, and architectural finish.

Selecting a block type or wall thickness is not an engineering design. Reinforcement layout, foundation dimensions, surcharge loads, and drainage must all be designed for the actual conditions of the project.

Segmental block systems deserve particular care. At greater heights or under heavier loads they may require geogrid reinforcement or project-specific geotechnical design, and should not be treated as equivalent to a conventional reinforced masonry wall.

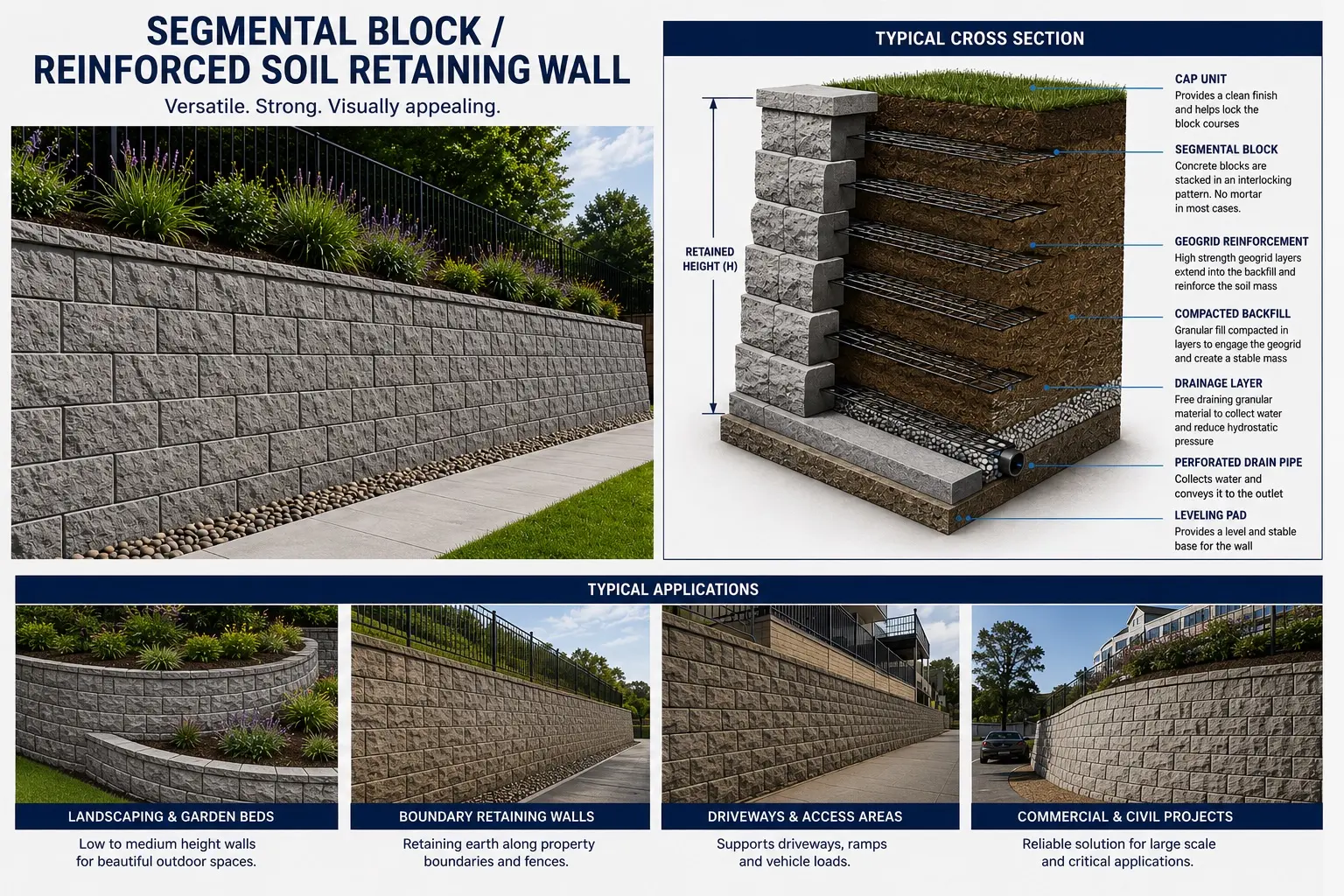

Segmental block and reinforced soil retaining wall diagram showing cap unit, geogrid reinforcement, compacted backfill, drainage layer, perforated drain pipe, and levelling pad, with typical applications

Gabion Retaining Walls

Steel wire mesh baskets filled with durable stone, assembled in a modular arrangement: a gravity system that uses its own mass and geometry to resist earth pressure. Robust, flexible, able to accommodate limited ground movement, and naturally suited to projects where the stone finish is part of the landscape design.

The voids between the stones let water pass through and help relieve hydrostatic pressure, but permeability does not replace proper drainage design, filter layers, and management of water behind the wall. For taller walls, a stepped or battered configuration improves stability, and mesh type, coating, and corrosion protection must suit the exposure and design life.

Damaged mesh is the critical defect in an ageing gabion wall. Loss of basket integrity lets the stone fill move and progressively degrades the wall. We assess the cause and, where appropriate, design repair, strengthening, or rehabilitation instead of full replacement.

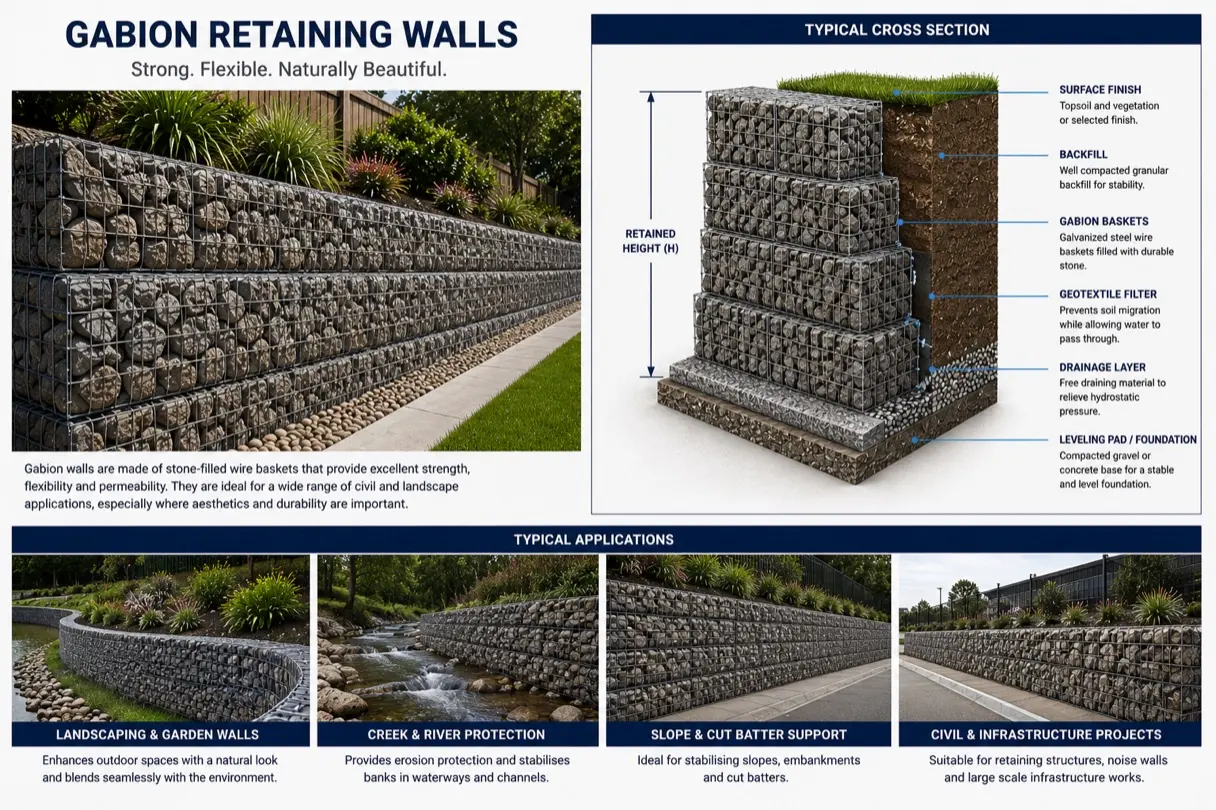

Gabion retaining wall diagram showing stone-filled steel baskets, geotextile filter, drainage layer, and levelling pad, with typical applications from landscaping to creek protection

Behind the Wall

What you can't see is what keeps the wall standing

Filter geotextile, free-draining backfill, subsoil drainage, weepholes, reinforced grouted cores, and a properly sized footing: the elements that decide whether a wall lasts decades or fails early are all buried behind and beneath it. This is why drainage and backfill are specified on our drawings, not left to site judgement.

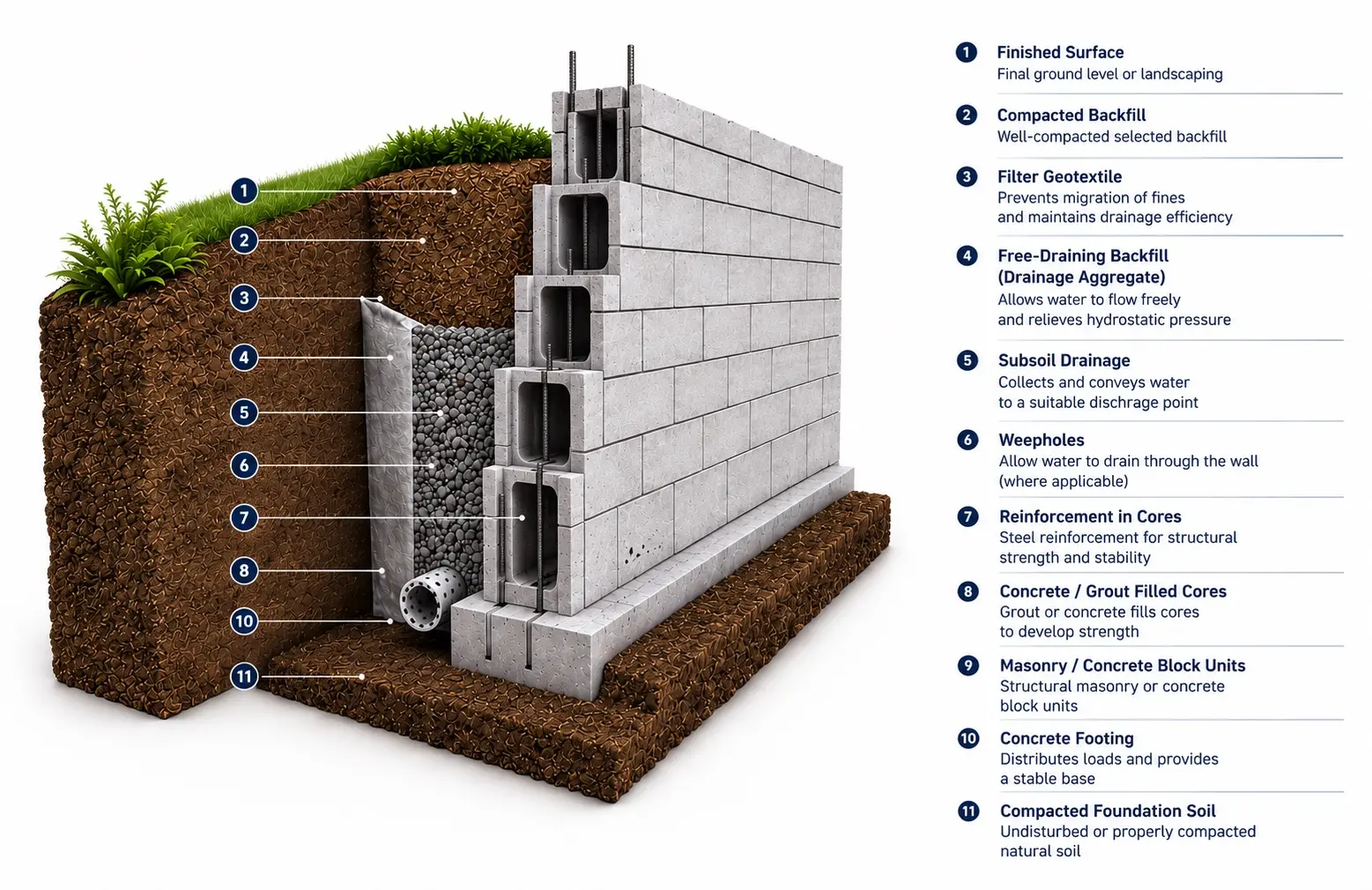

Cutaway cross-section of a reinforced block retaining wall labelling compacted backfill, filter geotextile, drainage aggregate, subsoil drainage, weepholes, reinforced grout-filled cores, and concrete footing

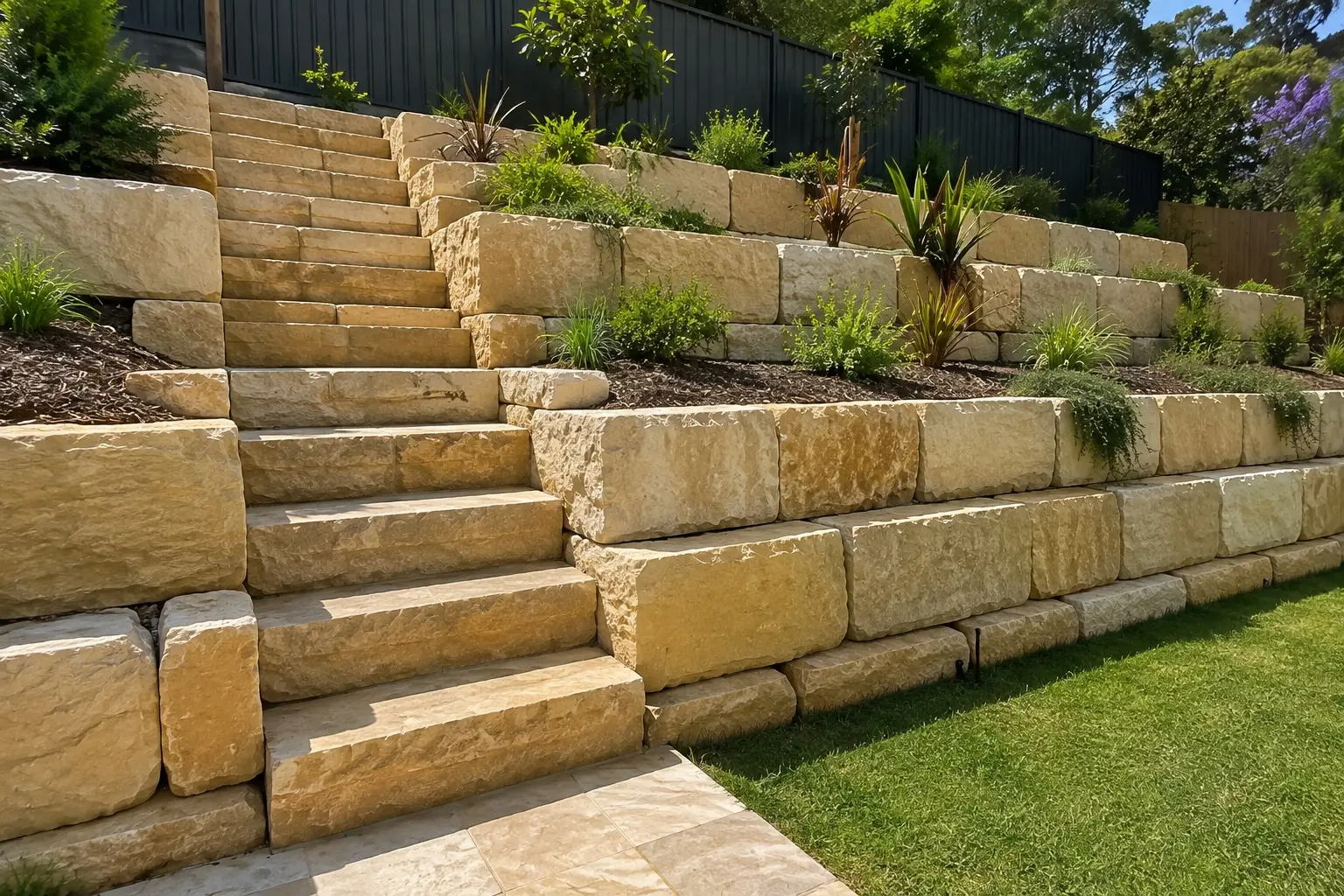

Terraced sandstone block retaining walls with integrated stairs and planted garden beds on a sloping backyard

Terracing a steep site into a series of lower walls reduces the pressure on each wall, but terraced walls interact, and the upper wall surcharges the lower one. The set must be engineered as a system, not as independent walls.

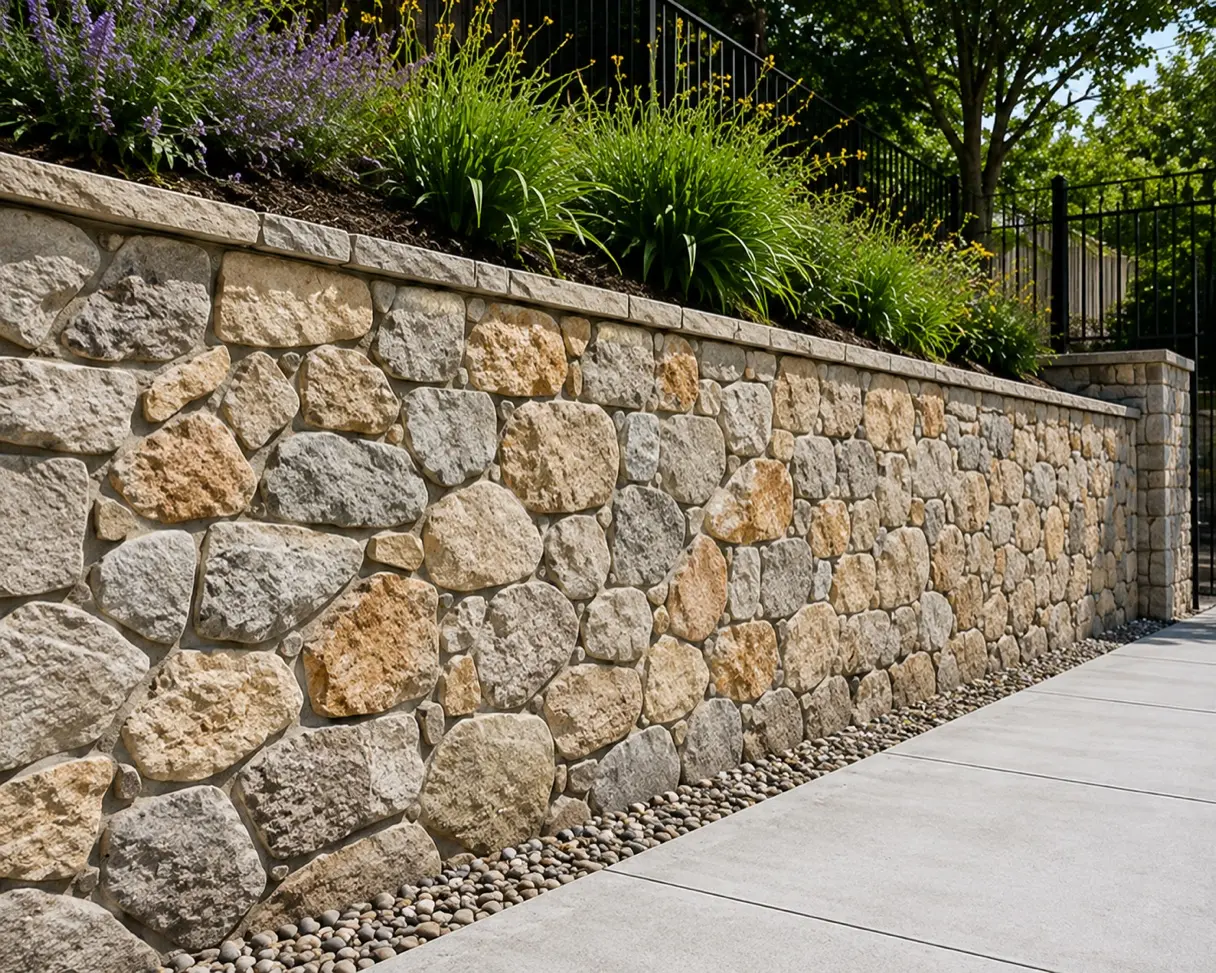

Mortared natural stone retaining wall with capping stones beside a paved path
Natural stone gravity wall: mass and geometry do the structural work, with drainage behind the face.

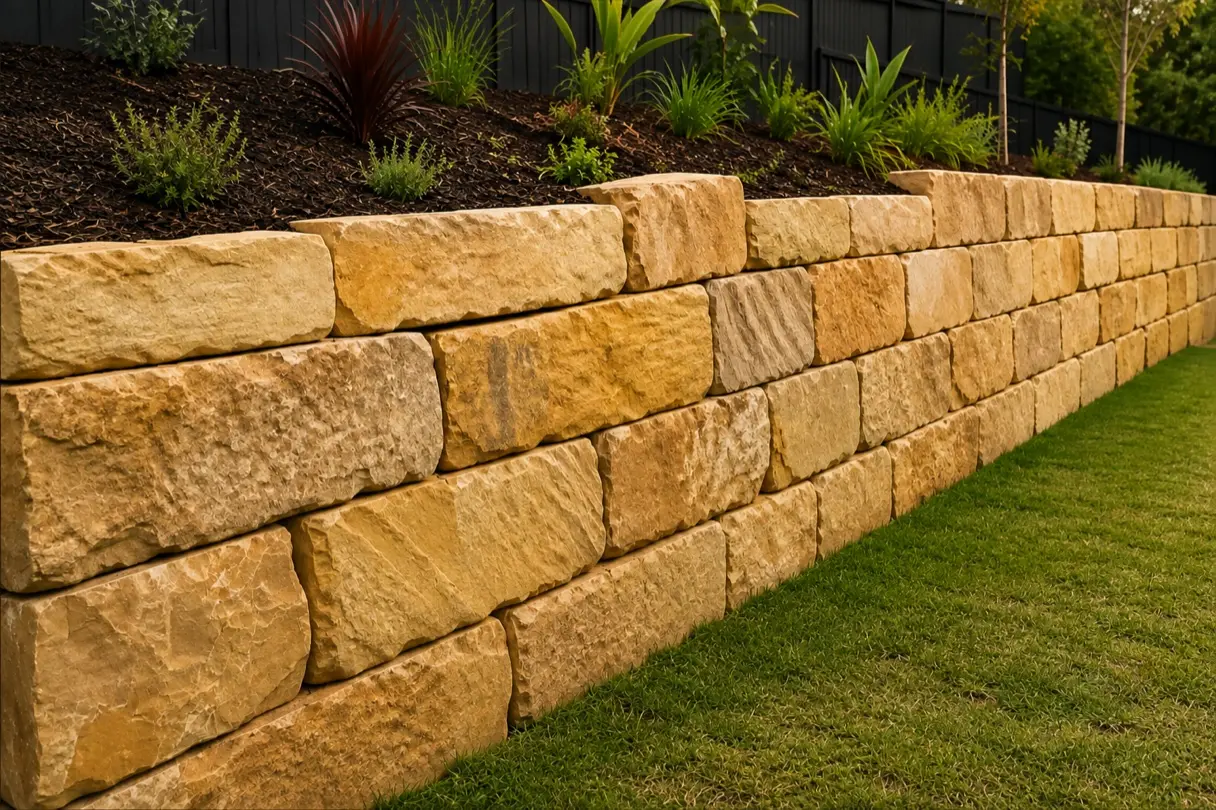

Sandstone block retaining wall retaining a planted garden bed above a lawn
Interlocked sandstone block wall, a popular gravity system for residential landscaping across Sydney.

Remedial Engineering

Repairing a failing wall without understanding why it failed will only delay the next failure.

Retaining walls fail for a finite set of reasons: inadequate drainage, insufficient structural depth or section, overloading from vehicles or structures above, foundation movement, or deterioration of materials over time. In many cases, more than one cause is present. A remediation design that does not identify and address all the contributing causes will not provide a durable solution.

Our remedial engineering process begins with a site inspection and structural assessment of the failing wall, measuring its deflection, assessing drainage conditions, reviewing surcharge loads, and evaluating the condition of the existing structural elements. We then prepare a written assessment report that identifies the cause of the failure and recommends the most appropriate remediation strategy, whether that means repairing and reinforcing the existing wall, rebuilding sections, or replacing the system entirely.

For walls near property boundaries or where failure could affect adjacent structures, we assess the risk to neighbouring properties and advise on any urgent stabilisation measures required before a permanent solution is implemented. Safety is prioritised over schedule in every remedial engagement.

Retaining wall systems we design and remediate

  • Reinforced concrete wallsCantilever and gravity concrete walls designed to AS 3600, with full soil pressure, drainage, and surcharge analysis for residential and commercial applications.
  • Steel post & timber sleeper wallsThe most common residential wall type: UC steel posts with hardwood or treated pine sleepers. Economical, fast to construct, and effective when properly engineered and drained.
  • Masonry and block wallsReinforced masonry, core-filled block, architectural block, and segmental systems, designed to AS 3700 with appropriate reinforcement, drainage, and footing specifications.
  • Gabion wallsStone-filled steel mesh basket gravity walls for landscaping, slope stabilisation, and civil applications, including assessment and repair of walls with mesh corrosion or stone displacement.

Our Scope

Retaining wall projects we deliver

Our retaining wall team works across residential and commercial sites throughout Greater Sydney and NSW, designing new walls, assessing existing ones, and remediating walls that are in distress or have failed.

New Construction Retaining Walls

Engineering design for new retaining walls required to enable construction: level sites on sloping land, cut-and-fill platforms, driveway retaining, and boundary walls. We design the wall for the actual soil conditions and loading on the site, specify drainage requirements, and provide certified engineering drawings for the builder and certifier.

Assessment of Existing Walls

Independent structural assessment of existing retaining walls for pre-purchase due diligence, council requests, insurance purposes, or neighbour disputes. Our assessment report documents the wall type, condition, estimated remaining life, any structural concerns, and recommended actions, in plain language suitable for non-technical audiences.

Remediation of Failing Walls

Structural assessment, root cause diagnosis, and remediation design for walls showing signs of movement, cracking, bulging, or rotation. We identify why the wall is failing and design a remediation approach that addresses the cause, not just the visible symptom. For urgent cases, we provide same-day or next-day response and prioritise stabilisation.

Commercial Site Retaining Walls

Retaining walls for commercial and industrial sites, including walls subject to heavy vehicle surcharge loading, tall walls requiring geotechnical input, and walls near existing structures requiring differential settlement assessment. We coordinate with geotechnical engineers where required and provide a complete structural package for the certifier.

“A retaining wall that looks fine after construction can fail catastrophically five years later if drainage was not engineered from the start. Soil pressure and water pressure together will always win.”

IA Engineering Design Team
AS 4678
Earth-Retaining Structures
AS 3600
Concrete Structures
All NSW
Councils & LGAs
RPE
Certified Every Package

The Engineering

What goes into a retaining wall design

Retaining wall engineering involves calculating the lateral soil pressure exerted on the wall, which depends on the soil type, the retained height, the slope of the retained material, and the surcharge loads from any structure, vehicle, or landscape feature above the wall. Water pressure from poor drainage is frequently the dominant load on residential walls and must be designed out through appropriate drainage details, not ignored.

The wall structure must resist these loads in sliding, overturning, and bearing. For reinforced concrete walls, the bending and shear in the stem and footing must also be within the capacity of the section. For steel post walls, the post embedment depth and section size are the critical design variables.

Our retaining wall packages include structural drawings with full dimensions, reinforcement schedules (for concrete walls), drainage specification, and an engineering certificate signed by a Registered Professional Engineer. All designs comply with AS 4678 (Earth-Retaining Structures) and applicable material standards.

Retaining wall structural engineering drawings and details

Standards & Compliance

Every retaining wall design certified by Registered Professional Engineers

All retaining wall designs issued by IA Engineering carry the signature and certification of a Registered Professional Engineer (RPE) in New South Wales. Retaining walls over a specified height require engineering certification in most NSW councils, and our packages satisfy these requirements and are accepted by council and private certifiers across the state.

AS 4678 Earth-Retaining StructuresAS 3600 Concrete StructuresAS 3700 Masonry StructuresAS/NZS 1170 Structural ActionsAS 4100 Steel StructuresAS 1720.1 Timber StructuresNCC / BCA Compliant

Our Approach

How we work with you

We begin every retaining wall engagement by understanding the site context: retained height, soil type (from the geotechnical report or site inspection), surcharge loads, drainage conditions, and proximity to property boundaries or structures. If no geotechnical report exists, we advise on the appropriate level of investigation before the wall design can be finalised.

For remedial engagements, we inspect the failing wall before designing any solution, measuring deflection, assessing drainage, and identifying the root cause of the distress. We provide a written assessment report and remediation design that the owner, builder, and council can rely on.

Once drawings are issued, we remain available for builder and certifier queries throughout construction. For walls requiring hold-point inspections, typically before backfilling, we attend site and issue certificates promptly. For failing walls presenting an immediate safety risk, we respond as a priority and provide guidance on temporary stabilisation while the permanent solution is designed and approved.
