Home Extension EngineeringStructural Engineering for Extensions & Additions

Structural engineering for ground floor extensions, rear additions, side extensions, and second-storey builds — designed to connect safely to your existing home and certified for council approval.

EXTENSION.

Extensions & Additions

Extending your home demands precision at the join

A home extension is not simply a new structure built alongside the existing one. It must connect to the existing building in a way that transfers loads correctly, accommodates movement between old and new construction, and integrates with the original framing, footings, and roof structure. Getting this junction right is the critical engineering challenge in every extension project.

At IA Engineering, we assess the capacity of your existing structure before designing any extension. We determine what the existing footings, walls, and roof framing can carry, where reinforcement or upgrade is required, and how the new addition will connect structurally to the home you already have. This assessment-first approach prevents costly surprises during construction and ensures the extension performs as intended for the life of the building.

Whether you are adding a rear family room, a side-return kitchen extension, a second storey, or a detached studio above the garage, our structural engineering covers the full scope — from the footing design of the new addition to the transfer beams, connection details, and certification documentation required for council approval.

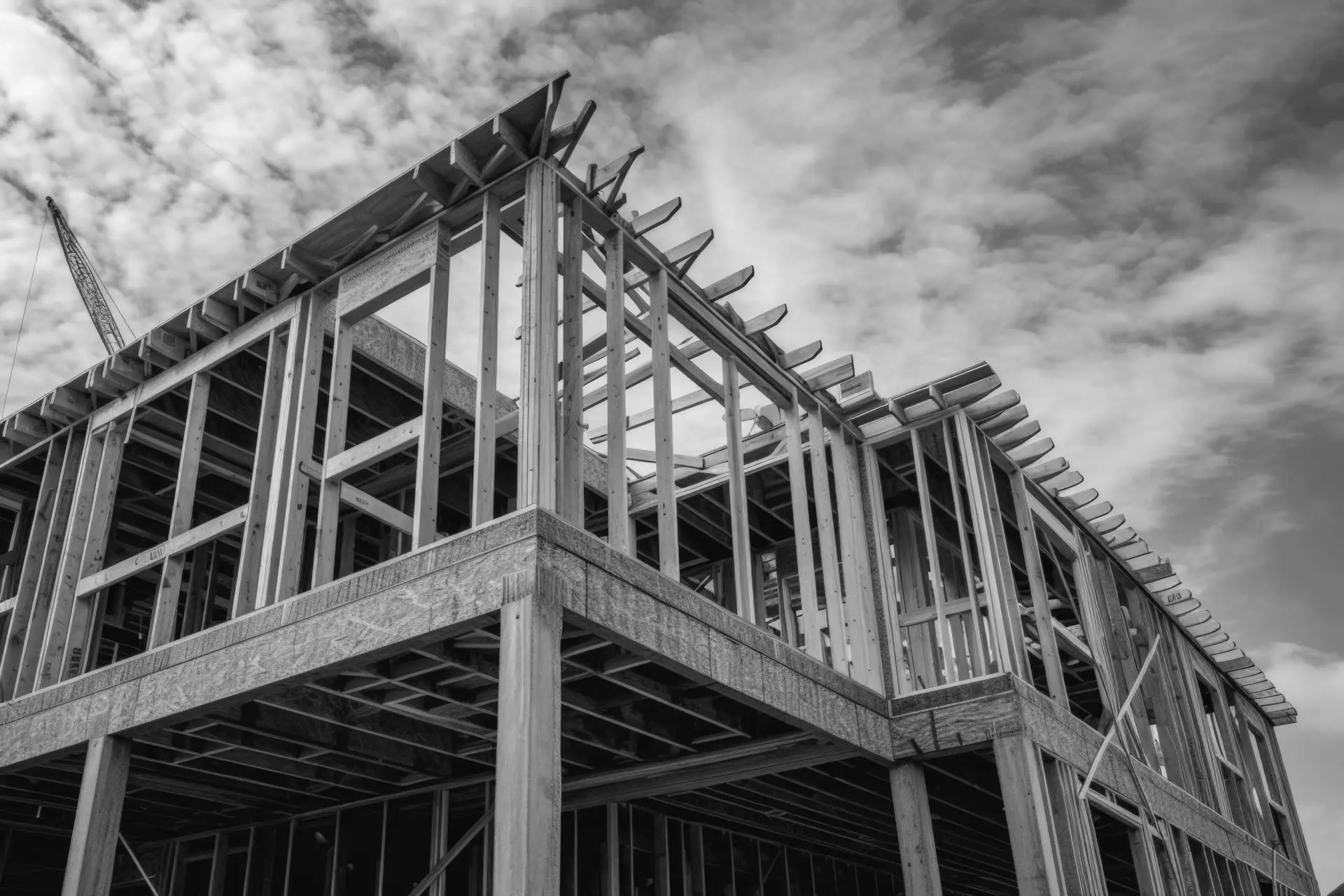

New timber framing for a two-storey home addition under construction
Extensions & Additions

Engineering that starts with your existing home

Before we design the new structure, we assess the existing one. Every extension is engineered to work with the building you have — not applied over it without regard for how the two interact.

  • Ground floor rear and side extensions
  • Second storey additions
  • Structural connections to existing building
  • Transfer beams and opening creation

The Connection Zone

The junction between old and new is where extensions fail.

When a new extension meets an existing home, two structures with different foundation ages, soil settlements, and construction methods must be joined in a way that accommodates their individual behaviour. Differential settlement — where the new addition settles differently to the existing structure — is one of the most common causes of cracking in home extensions.

Our engineers design connection details that manage this differential behaviour appropriately. In some cases, a construction joint is the correct engineering solution. In others, the new footings need to be deepened to match the bearing capacity of the existing. In all cases, the structural connection between old and new framing is specified explicitly — not left to the builder to interpret.

Transfer beams are frequently required where existing external walls are opened up to connect the extension to the main home. These beams must be sized to carry the load that was previously carried by the wall — and their bearing conditions, end fixity, and deflection limits must all be checked. We design these beams to Australian Standards and specify the required connections at both ends.

What our extension engineering covers

  • Existing structure assessmentWe assess the capacity of your existing walls, beams, footings, and roof structure before designing the new extension loads.
  • New footing & slab designFootings and slabs for the extension designed to match or complement the existing foundation system and site soil conditions.
  • Transfer beams & wall openingsBeam design for new openings in existing external walls, including bearing details, end fixity, and deflection requirements.
  • New framing & roof structureWall frames, roof rafters, ridge beams, and purlins for the extension area designed to AS 1684 or steel equivalent.
  • Structural connections to existingAll connections between the new and existing structure specified and detailed — no ambiguity for the builder or certifier.
  • Council & CDC documentationEngineering drawings and certificates prepared for DA or CDC approval, coordinated with your architect and building certifier.

Our Scope

Types of extensions we engineer

Our team works across the full spectrum of residential extension types — from small rear additions on established inner-city blocks to substantial second-storey additions on post-war homes across Greater Sydney and NSW.

Rear Ground Floor Extensions

The most common extension type in Greater Sydney — extending the rear of the home to create a larger kitchen, open-plan living, or family room. We assess the existing rear wall, design the transfer beam for the new opening, and engineer the new extension structure including footing, slab, wall framing, and roof to connect cleanly to the existing home.

Side-Return Extensions

Side-return extensions utilise the narrow corridor alongside a terrace or semi-detached home, typically widening the ground floor to create a full-width rear kitchen or living space. These projects often involve proximity to the boundary wall and shared structural elements — requiring careful load assessment and neighbour structure consideration in the engineering design.

Second Storey Additions

Adding a second storey to an existing single-storey home requires structural assessment of the entire existing building. The existing ground floor walls, footings, and roof structure must be able to carry the additional floor and upper-level loads. We assess the capacity of each element, design strengthening where required, and provide a complete structural package for the new upper level.

Detached Additions & Studio Builds

Detached structures on the same allotment — studios, home offices, guest rooms above a garage — require their own structural engineering package independent of the main dwelling. We design the footing system, structural frame, and roof structure for the new structure, and provide all required engineering certificates for the certifier.

“The best home extensions are the ones where you cannot tell where the original home ends and the new addition begins — and that starts with getting the structural junction right.”

IA Engineering Design Team
200+
Extensions Engineered
AS 1684
Timber Framing Standard
All NSW
Councils & LGAs
RPE
Certified Every Package

The Engineering

What we assess before we design

Every extension project begins with an assessment of the existing structure. We review the architectural drawings of the existing home, any available original engineering documents, and — where necessary — conduct a site inspection to confirm construction materials, wall types, footing conditions, and the capacity of the structure to carry the proposed addition.

For second-storey additions, this assessment is particularly critical. The existing ground-floor walls may need to be strengthened, the footings may need to be extended or underpinned, and the connection between the existing roof structure and the new upper floor must be clearly engineered. We assess each element in turn and design solutions that are structurally adequate, practically constructible, and cost-effective.

Our construction documentation — structural drawings, engineering certificates, and supporting reports — is prepared to satisfy the requirements of the development consent or CDC approval, and we coordinate directly with your architect and building certifier to ensure the engineering package addresses any specific conditions of approval.

Home extension structural engineering drawings and connection details

Standards & Compliance

Every extension package certified by Registered Professional Engineers

All structural designs issued by IA Engineering carry the signature and certification of a Registered Professional Engineer (RPE) in New South Wales. Our extension packages are prepared to meet the requirements of NSW councils, private certifiers, and building code authorities — with engineering certificates that cover the new structure, all structural alterations to the existing building, and the connections between old and new.

AS 1684 Timber FramingAS 4600 Cold-Formed SteelAS 3600 Concrete StructuresAS/NZS 1170 Structural ActionsAS 2870 Residential Slabs & FootingsNCC / BCA Compliant

Our Approach

How we work with you

We start by reviewing your architectural plans and any available information about the existing home — original engineering documents, building approvals, or geotechnical reports. If none exist, we advise on what investigation is required and can coordinate with geotechnical firms to obtain a current soil report. We issue a clear scope and fee proposal before any structural work begins.

Throughout design, we communicate directly with your architect and builder. If a structural solution — a transfer beam depth, a post location, a connection detail — affects the architectural layout, we raise it early and work collaboratively to find the best outcome for the project.

Once drawings are issued, we remain available for builder RFIs and certifier queries. For projects with mandatory hold-point inspections, we attend site and issue certificates promptly to keep construction on programme. Our goal: no structural defects, no council hold-ups, and no callbacks after handover.

Engineered to Extend, Certified to Build

Planning a home extension or addition?

From rear ground floor extensions to full second-storey additions, our team delivers structural engineering packages that protect the existing home and certify the new one for council approval.
