Driveway EngineeringStructural Engineering for Driveways & Crossings

Structural design for residential and commercial driveways, council crossing design, and engineering for concrete and asphalt driveway surfaces subject to vehicle loading requirements.

DRIVEWAY.

Driveway Engineering

A driveway that cracks after two years was not engineered — it was guessed

Driveway design is more than a choice of surface material. The structural performance of a driveway depends on the subgrade strength, the pavement thickness, the reinforcement design, the vehicle loading it must carry, and the drainage conditions that govern long-term subgrade stability. A residential concrete driveway that carries heavy vehicles — delivery trucks, waste collection, or loaded trailers — must be designed for those loads. A driveway over an underground structure must be checked for the load it transfers.

At IA Engineering, we provide structural engineering for residential and commercial driveways, council crossing design, and engineering assessments for driveways subject to specific loading conditions or that interface with other structural elements. Our driveway engineering is used by homeowners, developers, councils, and commercial operators who need a documented, certified structural design — not a rule-of-thumb thickness estimate.

We also provide engineering for vehicle crossings at the road boundary — the section of driveway that crosses the council footway — which in most NSW councils requires a separate engineering package and council approval before construction. Our crossing designs meet the standard specifications of all major Sydney council areas and are prepared to facilitate fast approval.

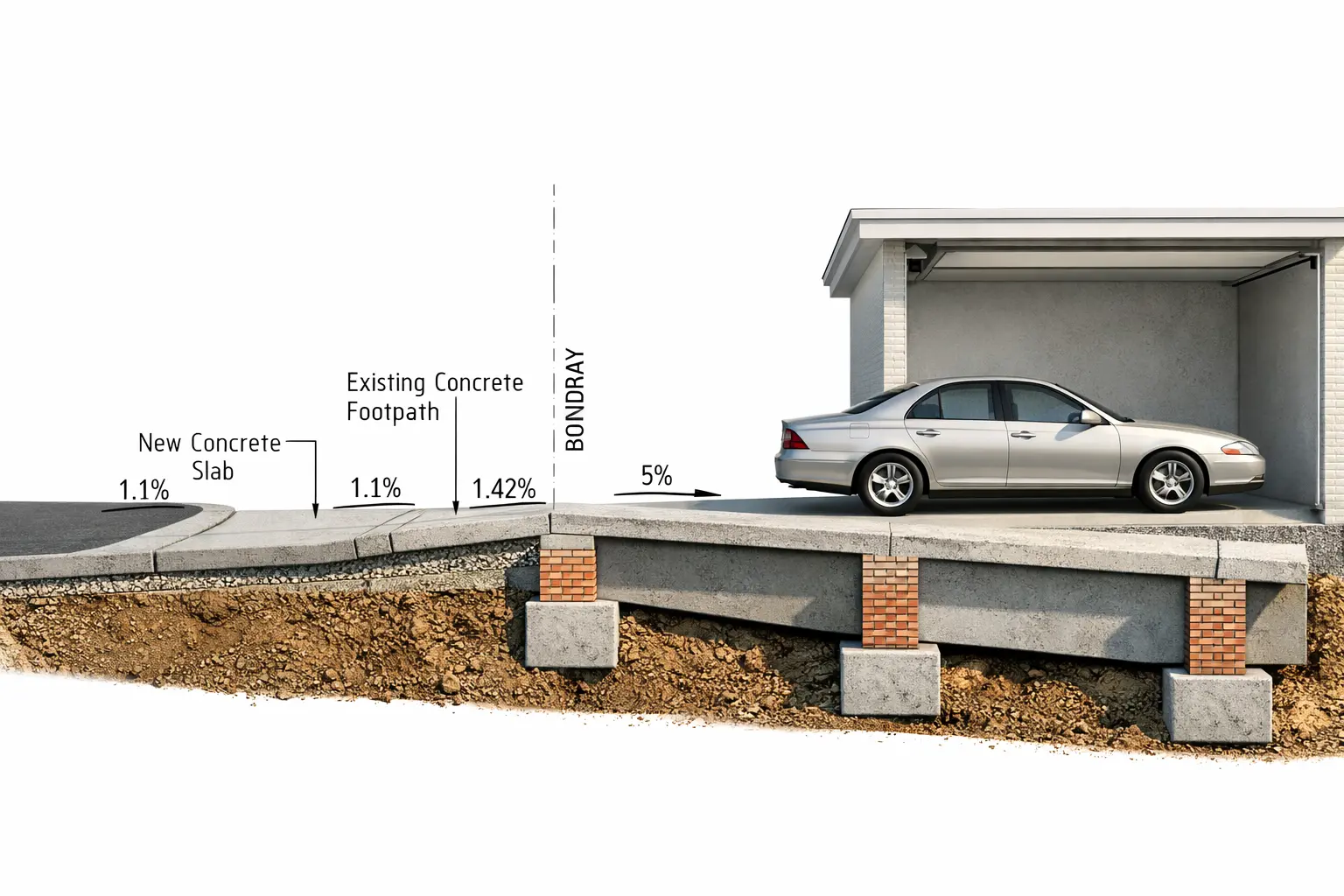

Cutaway section of an engineered driveway showing the new concrete slab, footpath crossing gradients, and garage slab on footings
Driveways & Crossings

Structural design for the loads your driveway actually carries

We design driveways and crossings for the real loading conditions — not a generic standard thickness. The difference between a residential car driveway and one that carries delivery vehicles is engineering, not guesswork.

  • Residential concrete driveway design
  • Commercial driveway and hardstand design
  • Council crossing design and approval
  • Driveways over underground structures
Driveway engineering and concrete crossing design in Sydney

Heavy vehicle driveway design for a commercial property in Western Sydney — concrete pavement engineered for loaded truck access and council crossing design approved on first submission.

Council Crossing Design

The crossing at the road boundary is council's responsibility to approve and yours to engineer.

A vehicle crossing — the section of a driveway that crosses the council footway between the property boundary and the road kerb — is public infrastructure. In most NSW councils, any new crossing or modification to an existing crossing requires a separate application and engineering approval before construction. This applies to residential driveways, commercial vehicle entrances, and any driveway that intersects a public footpath.

Council crossing designs must meet the specific technical requirements of each council — including minimum concrete strength, reinforcement layout, crossfall gradients, kerb ramp details, and the transition between the road pavement and the property driveway. Requirements vary between councils, and a design that satisfies one council may not satisfy another.

Our crossing designs are prepared to meet the standard specifications of all major Greater Sydney councils and are submitted with all the documentation the council requires — reducing the likelihood of requests for additional information and minimising delays to the approval and construction process. For commercial developments where vehicle crossing design is a condition of the development consent, we coordinate directly with the council traffic engineer to ensure the crossing design meets the specific requirements of the consent.

Our driveway engineering services

  • Residential driveway structural designConcrete pavement thickness design, reinforcement specification, and subbase requirements for residential driveways subject to standard car and light vehicle loading.
  • Heavy vehicle driveway designPavement design for driveways subject to heavy vehicle loading — garbage trucks, delivery vehicles, concrete mixers, and loaded trailers — with explicit load case analysis.
  • Council crossing design and approvalVehicle crossing designs prepared to the standard specifications of all major NSW councils — submitted with all required documentation to facilitate fast approval.
  • Driveways over underground structuresStructural engineering for driveways over basements, underground tanks, drainage structures, and service conduits — ensuring the pavement does not transfer damaging loads to the underlying structure.
  • Commercial hardstand and loading dock designConcrete pavement and hardstand design for commercial sites — loading dock approaches, container storage areas, and heavy vehicle manoeuvring areas.
  • Driveway failure assessment and remediationStructural assessment of cracked, settled, or failing driveways — identifying the cause of the failure and designing a repair or replacement that addresses the root cause.

Our Scope

Types of driveway projects we engineer

Our driveway engineering team works across residential and commercial projects throughout Greater Sydney and NSW — from simple residential concrete driveways to complex commercial hardstands and council crossing designs for development projects.

Residential Driveways

Structural design for new residential concrete driveways — including pavement thickness, reinforcement specification, subbase preparation requirements, and joint layout. For driveways that will carry vehicles heavier than standard passenger cars, we calculate the pavement for the actual loading rather than applying the standard residential thickness.

Council Vehicle Crossings

Vehicle crossing design and council approval documentation for residential and commercial properties. We prepare crossing designs to the standard specifications of the relevant council area and submit all required documentation with the application — minimising the likelihood of requests for additional information and delays to the approval.

Commercial Driveways & Hardstands

Pavement design for commercial sites subject to heavy vehicle loading — loading dock approaches, truck manoeuvring areas, container storage hardstands, and commercial carparks. We design for the actual vehicle loading conditions, including loaded axle weights, turning loads, and static loads from parked or stored heavy equipment.

Driveways Over Underground Structures

Where a driveway crosses an underground basement, water tank, drainage structure, or service conduit, the pavement must be designed as a structural slab — not a simple pavement. We design these slabs to AS 3600 for the actual vehicle loads, coordinating with the structural design of the underground structure to ensure the interface is correctly engineered.

“A driveway is not a cosmetic element — it is a pavement structure that must carry real loads on real soil. When those loads are not calculated and that soil is not accounted for, the cracks appear within two years.”

IA Engineering Design Team
AS 3600
Concrete Structures
All LGAs
Council Crossing Specs
All NSW
Councils & LGAs
RPE
Certified Every Package

The Engineering

What determines driveway structural design

Driveway pavement design is governed by two primary inputs: the strength of the subgrade soil and the loading that will be applied to the pavement. The subgrade strength is determined from the soil classification or a California Bearing Ratio (CBR) test. The loading is defined by the heaviest vehicle that will use the driveway and the frequency of its use.

For residential driveways carrying standard passenger vehicles, the design is relatively straightforward. For driveways carrying heavy vehicles, the pavement thickness and reinforcement must be explicitly designed — and a domestic driveway thickness will typically be inadequate. Getting this wrong results in premature cracking, slab deflection, and expensive reinstatement.

For driveways over underground structures, the pavement is designed as a structural slab spanning between supports — a fundamentally different design process to a slab-on-ground. Our documentation covers the structural slab design, the connection to the supporting elements, and the loading combinations that govern the critical design case. All concrete driveway designs are designed to AS 3600.

Driveway structural engineering drawings and pavement design details

Standards & Compliance

Every driveway design certified by Registered Professional Engineers

All structural designs issued by IA Engineering carry the signature and certification of a Registered Professional Engineer (RPE) in New South Wales. Our driveway and crossing packages are prepared to meet the requirements of NSW councils and the applicable Australian Standards — providing the certifier and council with the independent professional certification required for approval.

AS 3600 Concrete StructuresAS/NZS 1170 Structural ActionsAustroads Pavement Design GuideCouncil Crossing SpecificationsAS 2870 Residential Slabs & FootingsNCC / BCA Compliant

Our Approach

How we work with you

We start every driveway engagement by understanding the loading conditions and the site — the vehicle types that will use the driveway, the subgrade soil conditions, any underground structures below the driveway area, and the specific council crossing requirements if the driveway connects to a public road. We issue a clear scope and fee proposal before any engineering work begins.

For council crossing designs, we coordinate directly with the council area's technical requirements and prepare all documentation required for the crossing application — so the owner or developer does not need to manage the technical interface with council.

Once drawings are issued, we remain available for builder queries and certifier questions throughout construction. For driveway slabs over underground structures, we offer hold-point inspections at the reinforcement stage to confirm the steel placement is in accordance with the structural design before concrete is poured.
